XR-CHC & XRB-CHC controllers

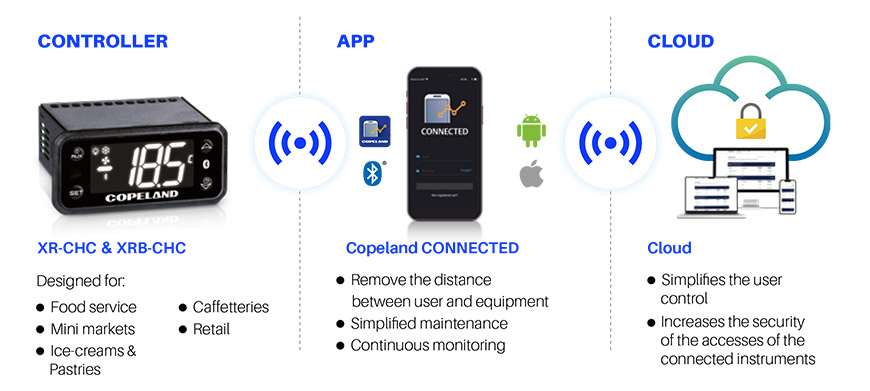

XR-CHC & XRB-CHC series are the innovative controllers designed for refrigeration applications that guarantee high usability and quality food storage. Particularly the XRB-CHC family is dedicated to bottle coolers while the XR-CHC is designed for cabinet and cold rooms. The controllers include Bluetooth® connectivity that allows interaction with mobile devices thanks to the Emerson™ CONNECTED App, making easier configuration, services, analysis and more.

• User friendly interface
• Direct access to main functions
• Easy and intuitive installation
• Hot Key connector for quick and easy programming
• Automatic defrost management
• Pull down time
• Condenser monitor for maintenance management
• Service counters
• Firmware upgradable
• Double parameter map
• RTC with Lithium battery

High value
• The new X-MOD motion detector sensor is the ideal solution for refrigeration field, particulary for cold rooms and bottle coolers, because it is designed for light control and sales performance indication.
• Bluetooth® connectivity.
• Reports (temperature values and events) are easily accessible for a complete and immediate food control. It is possible to save reports as files and send them to other PCs for storage and analysis.
• Thanks to the easy and fast installation of instruments and App, it is possible to install the controller in a few minutes, create new users and browse all the functionalities of the Dixell solution.
• The system is provided with an advanced user control method that blocks unauthorized connections to the controller always ensuring a high security level of the system.
• The powerful datalogger of the instrument allows users to save temperatures, alarms and events. Depending on the sampling time that has been selected, it is possible to save up to 1 year of data.
• ​We firmly believe in the respect and safeguard of the environment and respond to the requests of eco-friendly gas usage, such as Propane. Controllers mount relays suitable for ATEX applications as they have been tested following EN60079-15.

Standard refrigeration XR30CHC  XR60CHC XR70CHC  XR77CHC
Bottle coolers  XRB30CHC  XRB60CHC  XRB70CHC
Display 110, 230Vac ​110, 230Vac 110, 230Vac  110, 230Vac
Power Supply 110, 230Vac  110, 230Vac 110, 230Vac  110, 230Vac
Probe inputs up to 3 x NTC/Pt1000* up to 3 x NTC/Pt1000* up to 4 x NTC/Pt1000* up to 4 x NTC/Pt1000*
Digital inputs up to 2 x configurable** up to 2 x configurable** up to 2 x configurable** up to 2 x configurable**
Relay outputs 16 + 8A 16 + 8 + 8A or 20 + 8 + 5A 16 + 8 + 8 + 5A 16 +16 + 5 + 7A
Terminals spade, screw or plug-in spade, screw or plug-in spade, screw or plug-in spade, screw or plug-in
Buzzer present present present present
Data Logger optional optional optional optional
RTC with Lithium battery optional optional optional optional
**Up to 2 NTC/Pt1000 when the digital input is configured as probe         **Up to 3 NTC/Pt1000 when the digital inputs are configured as probe


Datasheet Download
XR-CHC & XRB-CHC Series

Dimension & Cut out Download
CH : 32x74 mm
